Marine Stainless Steel Tanks & Scrubbers

Modern vessels require complex equipment and structural components designed to withstand harsh marine conditions, aggressive chemicals, and high mechanical stress.

Western Technological Solutions manufactures a wide range of stainless steel equipment used in shipbuilding, ship repair and retrofit, and offshore engineering.

Typical marine fabrication projects include:

Exhaust gas treatment equipment

• marine scrubber towers
• urea tanks for marine Selective Catalytic Reduction (SCR) Systems
• exhaust gas cleaning units
• absorber columns
• catalytic reactor housings
• stainless steel exhaust ducts

Fuel storage systems

• methanol fuel tanks
• piping systems
• welded aluminum LNG tank saddles and supports
• alternative fuel storage tanks
• chemical tanks
• waste and sludge tanks

Process and pressure systems

• pressure vessels
• Marine Exhaust Gas Economizers (EGE) or Waste Heat Recovery Systems (WHRS)
• industrial reactors
• heat exchangers
• filtration equipment

Structural stainless steel assemblies

• offshore modules
• structural frames
• support structures
• marine platform assemblies

All fabricated components are produced according to strict welding ISO 3834-2 and EN 1090-3 EXC3 standards and quality control procedures required by shipyards and classification societies.

Environmental regulations are one of the main drivers shaping modern ship design and marine technology.

The International Maritime Organization (IMO) introduced strict global limits on sulphur emissions from ships through MARPOL Annex VI, which entered into force as part of the IMO 2020 regulation.

Under these rules:

• the sulphur content in marine fuel used globally is limited to 0.50% m/m
• in Emission Control Areas (ECAs) such as the Baltic Sea and the North Sea the limit is 0.10% m/m

To comply with these requirements, ship operators may either switch to low-sulphur fuels or install Exhaust Gas Cleaning Systems (EGCS), commonly known as scrubbers.

Within the European Union, the EU Sulphur Directive (Directive 2012/33/EU) further strengthens these requirements by imposing strict sulphur limits for ships operating in European waters and while at berth in EU ports.

These regulations have significantly increased demand for scrubber systems, emission control technologies and corrosion-resistant materials used in exhaust gas treatment equipment.

Integrating Energy Efficiency Measures (EEXI, CII, SEEMP)

Beyond sulphur limits, IMO now requires all ships to meet energy-efficiency regulations:

• EEXI – Energy Efficiency Existing Ship Index (Technical Measure)

Mandatory for all ships ≥400 GT, addressing design-related efficiency improvements.

• CII – Carbon Intensity Indicator (Operational Measure)

Annual rating (A-E) based on CO₂ emissions relative to transport work. Ships rated D for 3 consecutive years or E for 1 year must submit a corrective plan.

• SEEMP Part I / II / III – Ship Energy Efficiency Management Plan

SEEMP requires continuous improvement of operational efficiency and must include:

• fuel consumption data collection
• CII calculation
• 3-year improvement strategies
• corrective actions for low CII ratings

Waste Heat Utilization: A Key IMO-Recognized Energy Efficiency Measure

Waste Heat Utilization (WHU), also known as Waste Heat Recovery (WHR), is officially recognized by the International Maritime Organization (IMO) as an effective energy-efficiency measure that helps ships meet mandatory efficiency standards under MARPOL Annex VI, including EEXI, CII, and SEEMP requirements.

The IMO SEEMP guidelines explicitly list waste heat recovery (WHR) as an effective energy-efficiency measure:

“Waste heat recovery systems use thermal heat losses from the exhaust gas for electricity generation, heating, or propulsion.”

By integrating waste heat utilization systems such as:

• Exhaust Gas Economizers (EGE)
• Waste Heat Recovery Units (WHRU)
• Combined Heat & Power (CHP) modules
• Heat-to-electricity systems (e.g., ORC units)

operators can significantly reduce fuel consumption, lower CO₂ emissions, and improve a vessel’s CII rating, directly supporting compliance with IMO’s GHG Strategy.

Supporting the IMO 2023 GHG Strategy

The 2023 IMO Strategy on Reduction of GHG Emissions from Ships targets:

• Net-zero GHG emissions by around 2050
• At least 20% reduction by 2030 (striving for 30%)
• At least 70% reduction by 2040 (striving for 80%)

Waste heat recovery, energy-efficient design, and optimized operations form part of the short- and mid-term decarbonization measures envisioned by IMO.

Compliance with IMO and EU maritime emission regulations now requires a holistic approach combining:

• Low-sulphur fuel compliance
• Emission-control systems
• Technical and operational energy-efficiency measures (EEXI & CII)
• Deployment of waste heat utilization systems
• Continuous SEEMP implementation and performance monitoring

These regulatory frameworks drive the adoption of greener marine technologies and accelerate the maritime industry’s shift toward low-carbon, energy-efficient operations.

ORC Systems for Advanced Marine Waste-Heat Utilization

Modern marine vessels, both existing fleets and newbuilds equipped with internal combustion engines running on traditional hydrocarbon fuels or alternative low-carbon fuels, still possess significant untapped energy-efficiency potential.

Historically, insufficient attention has been given to recovering low-temperature waste heat, despite the fact that marine internal combustion engines lose up to 50% of fuel energy as unused thermal discharge through exhaust gas and cooling systems.

Conventional ship designs maintained exhaust gas temperatures above the acid dew point to avoid condensation and corrosion inside economizers. Typical exhaust temperatures often exceed 200°C, causing valuable thermal energy to be vented overboard without performing useful work.

Today, advances in marine waste-heat recovery technologies, especially Organic Rankine Cycle (ORC) systems, enable vessels to harness exhaust heat below the dew point and even recover thermal energy from engine jacket-water cooling circuits. This recovered heat can be efficiently converted into electrical power, reducing auxiliary engine loads and lowering total fuel consumption.

Marine ORC Systems based on two cornerstones:

1. Waste Heat Recovery Systems (WHRS)
2. ORC-Unit

Unlike steam-based systems, ORC units operate using organic working fluids, allowing efficient energy recovery from low- to medium-temperature heat sources commonly found on marine engines.

ORC systems are commercially deployed on cargo ships, tankers, cruise vessels, offshore vessels, and ferries, delivering:

• 5-12% additional electrical power generation depending on engine size and thermal profile
• 2-5% total fuel-consumption reduction on large engines
• Lower CO₂ emissions, improving operational Carbon Intensity Indicator (CII) performance
• Support for IMO-required energy-efficiency plans (SEEMP) and improved EEXI compliance

This positions ORC technology as one of the most impactful Energy Efficiency measures for meeting IMO GHG Strategy targets for 2030 and 2050.

Deep Heat Recovery: New Materials and Condensing Economizers

As the maritime sector accelerates toward Deep Heat Recovery using advanced Organic Rankine Cycle (ORC) systems, the industry’s objective is to cool exhaust gases as much as technically and economically feasible, recovering energy from temperature ranges that were previously inaccessible and maximizing total waste-heat-to-power conversion.

However, condensing exhaust gas requires components to operate below the sulfuric acid dew point, which forms when SO₂ oxidizes to SO₃ and reacts with water vapor to create H₂SO₄.

To withstand this corrosive environment, high-alloy stainless steels and nickel-molybdenum enhanced materials are used:

• Molybdenum (Mo) additions significantly improve resistance to acid corrosion
• High-end condensing economizers and ORC evaporators utilize Mo-rich alloys (e.g., 316L, 317L, duplex and super-duplex grades, and Ni-based alloys)
• These materials ensure long service life even when operating in sub-dew-point heat-recovery regimes

Such material advancements enable the safe commercial deployment of condensing WHR systems, which extract more energy than conventional Exhaust Gas Economizer (EGE) units limited to dry operation above the dew point.

Marine Exhaust Gas Economizers (EGE) and WHRS Integration

Modern Marine Stainless Steel Exhaust Gas Economizers (EGE) and Waste Heat Recovery Systems (WHRS) can be seamlessly integrated with marine ORC modules.

In these hybrid configurations:

• The EGE preheats the ORC working fluid
• An ORC expander converts the recovered thermal energy into mechanical or electrical output
• Additional heat can be harvested from jacket-water, scavenge air, or lubricating-oil coolers
• The ORC reduces load on auxiliary generators, improving overall ship efficiency

These systems collectively enable vessels to unlock the full energy potential of their onboard heat sources, supporting compliance with IMO’s energy-efficiency framework, including EEXI, CII, and SEEMP Part I-III requirements.

Marine scrubbers are advanced environmental technologies designed to remove sulphur oxides (SOx) from ship exhaust gases.

By spraying alkaline water into the exhaust stream, scrubbers neutralize sulphur compounds and reduce air pollution generated by ships burning heavy fuel oil.

Scrubber systems provide several advantages:

• compliance with IMO MARPOL sulphur emission limits
• reduced SOx emissions in coastal regions
• operational flexibility for shipowners
• continued use of conventional marine fuels

Western Technological Solutions manufactures large stainless steel structures used in marine scrubber systems, including:

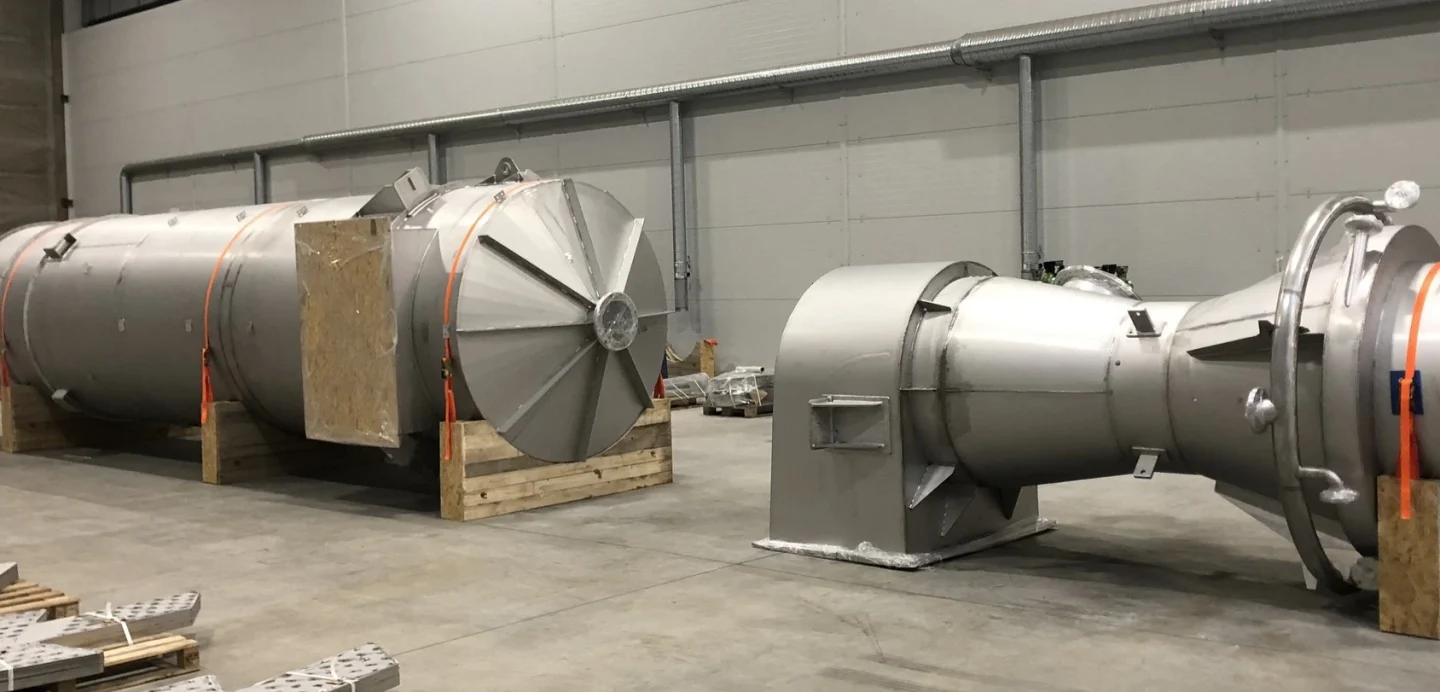

Scrubber towers

Large cylindrical structures that form the core of exhaust gas cleaning systems.

Absorption chambers

Reaction zones where seawater or alkaline solutions interact with exhaust gases.

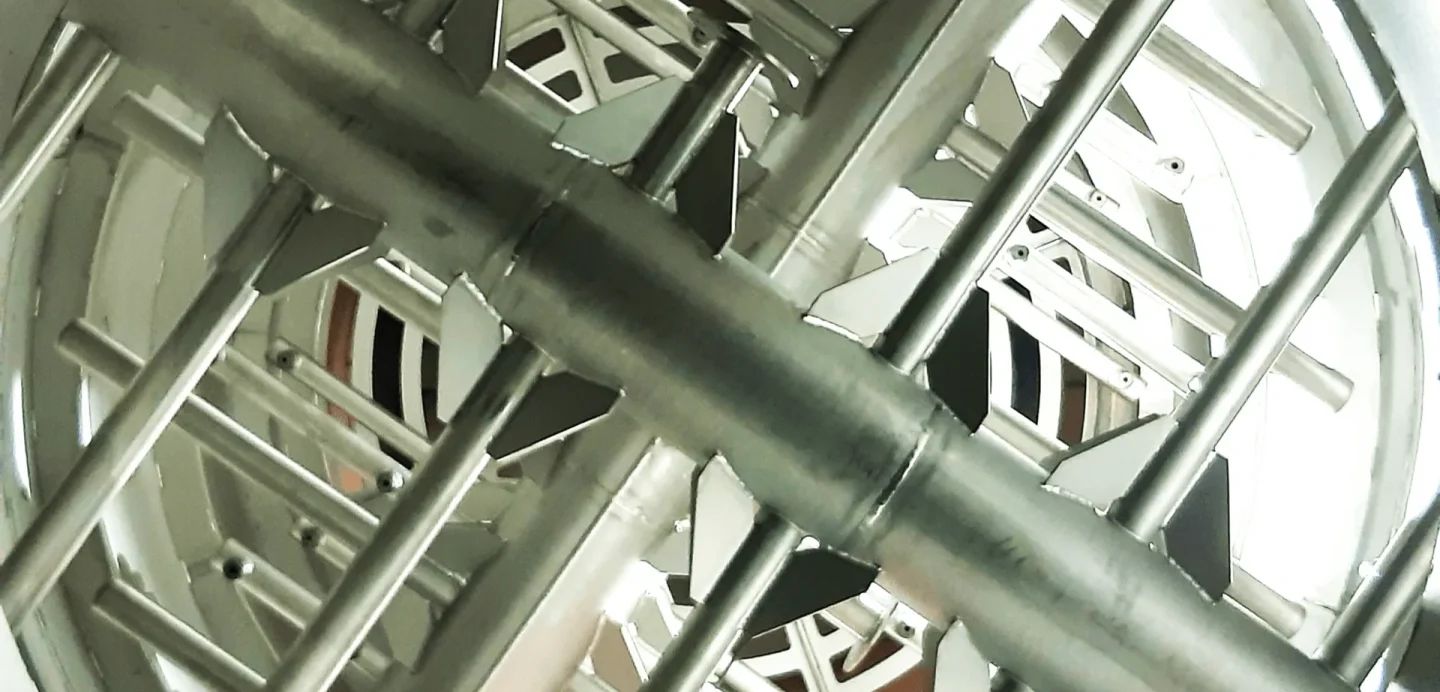

Demisters and separators

Internal components designed to remove droplets and residual particles from the cleaned gas stream.

Exhaust duct systems

Corrosion-resistant piping and structural components transporting exhaust gases to treatment units.

Scrubber systems operate under extremely corrosive conditions due to acidic exhaust gases and seawater exposure. Stainless steel is therefore widely used in these installations to ensure long service life and operational reliability.

As global environmental regulations become more demanding, the maritime industry increasingly relies on Selective Catalytic Reduction (SCR) systems to meet stringent IMO Tier III and MARPOL Annex VI emission standards.

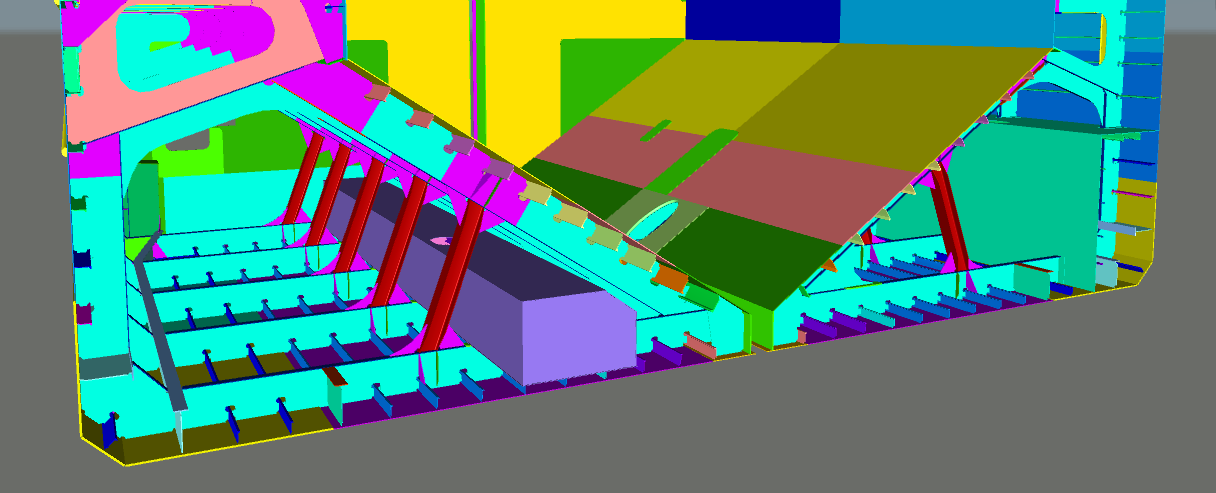

Central to every SCR installation are marine urea tanks, which store the high-purity urea solution required to reduce nitrogen oxide (NOx) emissions from marine diesel engines.

Marine urea (often AUS40) is injected into the exhaust stream, where it transforms into ammonia and reacts with NOx to convert harmful pollutants into harmless nitrogen and water.

SCR technology is currently one of the most effective NOx reduction solutions, enabling vessels to achieve up to 90% emission reduction, depending on engine conditions and system design. This makes properly engineered urea tanks essential for ships operating in Emission Control Areas (ECAs), where adherence to strict environmental requirements is mandatory. The increasing focus on sustainability and green shipping further boosts the adoption of reliable urea storage systems onboard modern commercial, industrial, and offshore vessels.

To ensure safe and efficient operation, marine urea tanks are installed within dedicated machinery spaces or protected below-deck compartments. Their design follows strict international classification standards requiring leak containment, controlled temperature conditions, safe routing of piping, and protection from heated surfaces. These tanks typically incorporate advanced level, temperature, and quality monitoring sensors, ensuring that the urea solution always maintains the correct concentration for optimal SCR performance. Such design requirements are enforced by classification societies to guarantee safe storage and usage of urea-based reductants on board.

By integrating high-quality urea tank systems, shipbuilders and operators strengthen their vessels’ environmental performance, reduce acidifying emissions, and protect marine ecosystems.

Urea tanks are a critical component of compliant SCR systems, helping vessels operate sustainably while meeting current and future environmental regulations. As the maritime industry continues its transition toward cleaner technologies, the installation of reliable urea storage solutions remains an essential step in achieving long-term operational and environmental goals.

The maritime industry is entering a new phase of energy transition as shipowners search for practical solutions to reduce greenhouse gas emissions and comply with increasingly strict environmental regulations. Alternative fuels are becoming a central element of this transformation, and methanol has emerged as one of the most promising practical options for future ship propulsion.

Methanol-powered vessels are already being introduced by major shipping companies because methanol offers several environmental advantages:

• zero sulphur content
• reduced particulate emissions
• lower nitrogen oxide emissions
• potential for carbon-neutral production

Unlike LNG or hydrogen, methanol is a liquid at ambient temperature and pressure, making it easier to store and transport using existing infrastructure. Unlike ammonia, methanol offers a significantly safer fuel option. It is easier to handle, less toxic at operational concentrations, and does not require the same level of extreme safety measures.

Methanol can be produced through different pathways:

• conventional methanol

Produced from natural gas through steam methane reforming.

While not carbon neutral, it offers lower emissions compared with traditional marine fuels.

• bio-methanol

Produced from biogas, biomass, agricultural residues or organic waste.

This type of methanol can significantly reduce lifecycle carbon emissions.

• e-methanol

Produced using renewable electricity and captured carbon dioxide.

E-methanol is considered one of the most promising pathways for achieving carbon-neutral shipping due to its scalability, sustainability, and compatibility with existing fuel infrastructure.

Bio-methanol and e-methanol also play a crucial role in strengthening the European Union’s energy security. By being produced from renewable electricity, biomass, and captured CO₂, these sustainable fuels reduce the EU’s dependence on external hydrocarbon supplies and support the long-term transition toward a resilient, low-carbon energy system. Their domestic production potential makes bio-methanol and e-methanol a key pathway to achieving genuine energy independence, strengthening supply stability, supporting economic growth, creating new jobs, and accelerating the decarbonization of both the marine and industrial sectors.

These fuel options are increasingly being considered for new vessel designs and retrofits of existing ships.

However, the adoption of methanol as a marine fuel introduces new engineering and safety considerations, particularly regarding fuel storage systems and tank materials.

Proper fuel tank design is essential to ensure safe operation, regulatory compliance and long-term durability in marine environments.

Methanol has specific chemical properties that require specialized storage solutions.

Compared to conventional marine fuels, methanol is more chemically reactive and requires materials that resist corrosion and maintain structural integrity over long operational periods.

Typical stainless steel grades used for methanol fuel tanks include AISI 304L (EN 1.4307) and AISI 316L (EN 1.4404), which are recommended for methanol storage applications due to their high corrosion resistance and stable performance in conductive polar solvents.

Industry guidance prioritizes 304L/316L austenitic stainless steels for tank plate materials, requiring successful methanol-immersion corrosion testing to ensure long-term durability.

Marine fuel system regulations further specify that stainless steels used in methanol fuel tanks must be austenitic or duplex grades, fully compliant with European stainless steel standards such as EN 10088 for material properties and chemical composition.

Design and fabrication of marine methanol fuel tanks must comply with internationally recognized safety and engineering requirements.

For ships, the primary regulatory framework is defined by the IMO IGF Code for low-flashpoint fuels and the IMO Interim Guidelines for Ships Using Methyl/Ethyl Alcohol as Fuel (MSC.1/Circ.1621), which specify mandatory provisions for tank construction, material selection, fire safety, ventilation, containment, and system integration.

These requirements are further supported by classification society rules, such as those published by Lloyd’s Register, DNV and Bureau Veritas, ensuring global compliance and ship-specific verification.

These organizations define technical standards for fuel tank design, piping systems, ventilation, leak detection and fire protection.

For reference in engineering design, especially for auxiliary or land-based methanol storage systems, widely adopted industry standards such as API 620 (large, welded low-pressure storage tanks) and API 653 (tank inspection, repair and reconstruction) remain applicable, providing a proven framework for flammable-liquid containment. European standards including EN 10088 (stainless steel materials), EN 13445 (unfired pressure vessels), EN 14015 (welded atmospheric storage tanks), and EN 1090 (structural steel fabrication) also contribute to material and fabrication quality for methanol storage systems in industrial environments.

Together, these international codes and engineering standards establish a harmonized, safety-driven foundation for the design of methanol fuel tanks across marine and industrial applications, ensuring compliance, structural integrity, and long-term operational reliability.

Compliance with these regulations ensures safe operation and certification of methanol-powered vessels.

Stainless steel methanol tanks provide major advantages:

Highest Safety

Stainless steel fuel tanks ensure maximum safety when storing methanol throughout the entire service life, unlike carbon-steel tanks that are susceptible to corrosion in methanol environments.

Corrosion resistance

Stainless steel offers excellent resistance to alcohol-based fuels, preventing degradation of tank surfaces.

Structural reliability

High mechanical strength allows tanks to safely withstand dynamic loads experienced by ships at sea.

Long service life

Stainless steel tanks have significantly longer operational life compared with conventional steel tanks.

Compatibility with alternative fuels

Stainless steel systems are compatible with methanol, e-methanol, and bio-methanol fuels.

Simplified fuel storage

Stainless Steel Methanol fuel tanks can be designed as:

• independent tanks located within dedicated fuel spaces
• integrated tanks within the ship’s hull structure

Tank placement must minimize collision risk and provide adequate protection against external damage.

Structural Integrity of Marine Fuel Tanks

Ensuring the structural integrity of marine fuel tanks, especially those designed for methanol, e-methanol, and other alternative fuels, is critical for safe and reliable ship operation. These tanks are engineered to withstand a wide range of demanding marine conditions, including:

• wave-induced loads and dynamic sea pressure
• continuous ship motion and vibration
• thermal expansion and temperature fluctuations
• internal and external pressure variations

To guarantee long-term durability and compliance with marine safety standards, advanced engineering methods are applied. Finite Element Analysis (FEA) and modern structural design tools are commonly used to model real-world operating conditions, verify load-bearing capability, reduce material fatigue, and optimize the overall performance of the tank structure.

Western Technological Solutions manufactures custom stainless steel tanks for methanol fuel systems, supporting shipbuilders developing methanol-ready vessels.

Stainless steel is essential for offshore and marine engineering, delivering long-lasting performance in environments exposed to constant seawater, high humidity, and dynamic loads. Thanks to its exceptional corrosion resistance, structural strength, and low maintenance requirements, stainless steel remains the preferred material for oil & gas platforms, offshore wind installations, subsea systems, and advanced marine structures.

Corrosion-Resistant Solutions for Harsh Marine Environments

The offshore environment exposes materials to continuous saltwater contact, extreme humidity, mechanical stress, and temperature fluctuations. Stainless steel’s natural resistance to corrosion and pitting ensures long service life, reduced maintenance costs, and improved safety for mission-critical offshore systems. Its durability makes it ideal for components such as seawater piping, pump housings, pressure vessels, riser systems, structural supports, and exposed deck equipment.

High-Strength Materials for Offshore Structures

Modern offshore operations demand materials capable of performing under high pressures and dynamic loads. Stainless steel offers excellent tensile strength and fatigue resistance, making it suitable for heavy-duty applications such as subsea manifolds, helideck structures, crane components, and load-bearing frames. Its stability and predictable performance under extreme conditions help maintain operational reliability and reduce downtime.

Essential for Subsea and Renewable Offshore Installations

In subsea engineering, stainless steel is used for umbilicals, control lines, hydraulic systems, and protective housings that require long-term stability at depth. Likewise, offshore wind farms rely heavily on stainless steel for transition pieces, ladders, platforms, cable protection systems, and safety equipment exposed to constant seawater spray and cyclic loading.

Extended Equipment Lifespan and Lower Total Cost of Ownership

By selecting corrosion-resistant stainless steel for offshore applications, operators significantly extend equipment lifespan while reducing the need for coatings, repairs, and costly replacements. This results in improved asset integrity, predictable maintenance planning, and long-term cost efficiency, critical benefits for both traditional offshore energy projects and modern renewable installations.

Where stainless steel is used in offshore projects:

• offshore platform structures and high-load assemblies
• deck equipment and safety-critical handling systems
• pressure vessels, process tanks, and seawater-exposed units

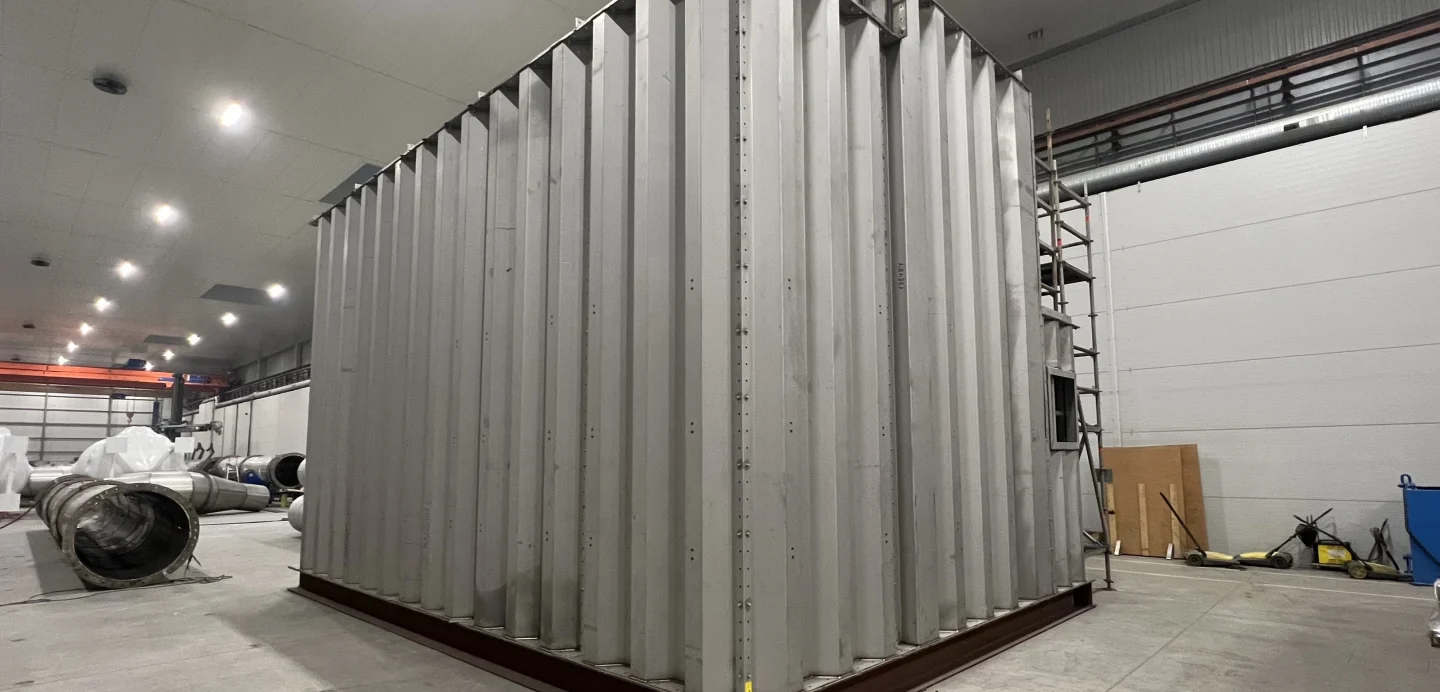

• modular accommodation and process housing
• engineered supports, brackets, and custom welded frameworks

At Western Technological Solutions, we deliver high-quality stainless-steel fabrication for complex offshore applications, from heavy structural components to precise subsea assemblies. Our solutions ensure long service life, minimal maintenance, and reliable performance in harsh marine environments.

The maritime industry is rapidly evolving toward cleaner technologies, stricter emission regulations, and carbon-neutral and alternative fuels.

Western Technological Solutions supports shipbuilders and marine engineering companies by providing high-quality stainless steel fabrication for modern vessels.

From marine Waste Heat Recovery Systems and methanol fuel tanks to complex welded offshore structures, the company delivers reliable engineering solutions that help the shipping industry meet the challenges of environmental compliance and sustainable maritime transport.
